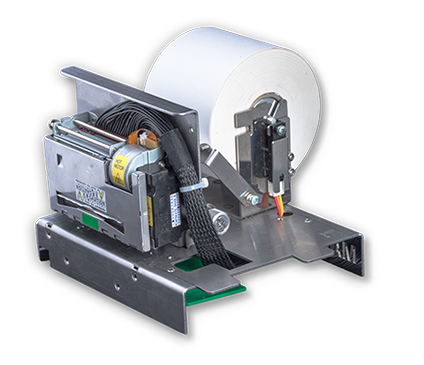

Kiosk-Printer
Standard
- Paper width 58 mm to 82.5 mm
- RS232 and USB Interface
- 10.0 - 15.0 VDC and 24.0 VDC
- Customized modifications on request
Specification - Kiosk Printer
DS-TPU-Standard
Technical Characteristics Thermal Printer
Technical Characteristics Controller Board
Dimensions
Interface
Options
Bar Code
Character Size
Character
Voltage Supply
102.9 mm x 88.9 mm
RS232 and USB
Paper Roll up to 250mm Ø
EAN 13, EAN 8, 2/5 Interleave, Codabar, Code 39, Code 128
8 x 20 dots, 10 x 20 dots, 12 x 20 dots, 16 x 24 dots
ISO-8859-1, 2, 5, 7, 8, 9, 13
10.0 - 15.0 VDC or 24.0 VDC
Paper Width
Printing Speed
Paper Thickness
Printing Width
Resolution
Dimensions
Temperature Range
58 to 82.5
up to 180
up to 120
up to 72
8
176 x 131 x 111.3
-20 to 60
mm
mm/s
g
mm
dots/mm
mm
°C
